DEEJAY LED TBHDOMETWEETER

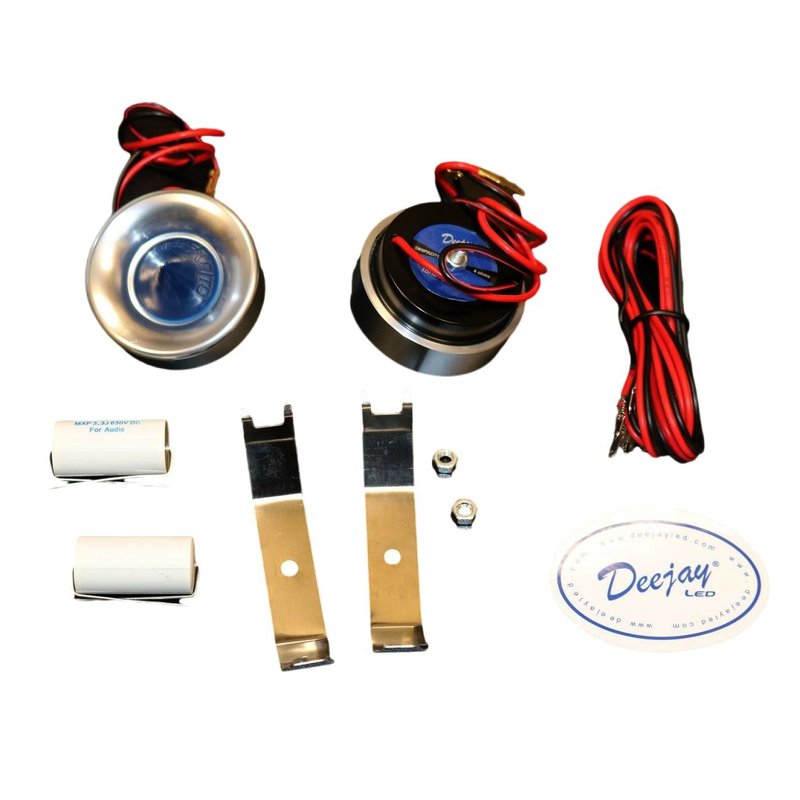

Through the surface mount Super Dome high sensitivity compression tweeter set with crossover capacitors and mounting system. It has an extended frequency range and a Neodymium magnet that make it ideal for high frequency reproduction. * Designed to mount into a surface with rear pressure retaining brackets * Aluminum diaphragm * Compact design * Designed for high frequency reproduction * Tweeter front Outer Diameter 2-in, 50mm * Nominal Impedance 4 Ohms * RMS Power: 50 watts * Program Power: 100 watts * Frequency Response: 5Hz-20KHz * Sensitivity: 98dB * Magnet Size: 25mm * Voice Coil Diameter: 25mm * Mounting depth requirement 16mm * Mounting hole diameter requirement: 42mm * rear side bracket spread requirement on back surface: Starting at 75mm * NetWeight 0.5kq * Shipping Weight 0.65kg * Fs 60.6Hz * Qms 3.18 * Qes 0.52 * Qts 0.45 ln the Box: (1) 4 Ohm Compression Tweeter pair (2) two high power Polypropylene Film Capacitors (3) Mounting Brackets and nuts (4) Small wire extensions
