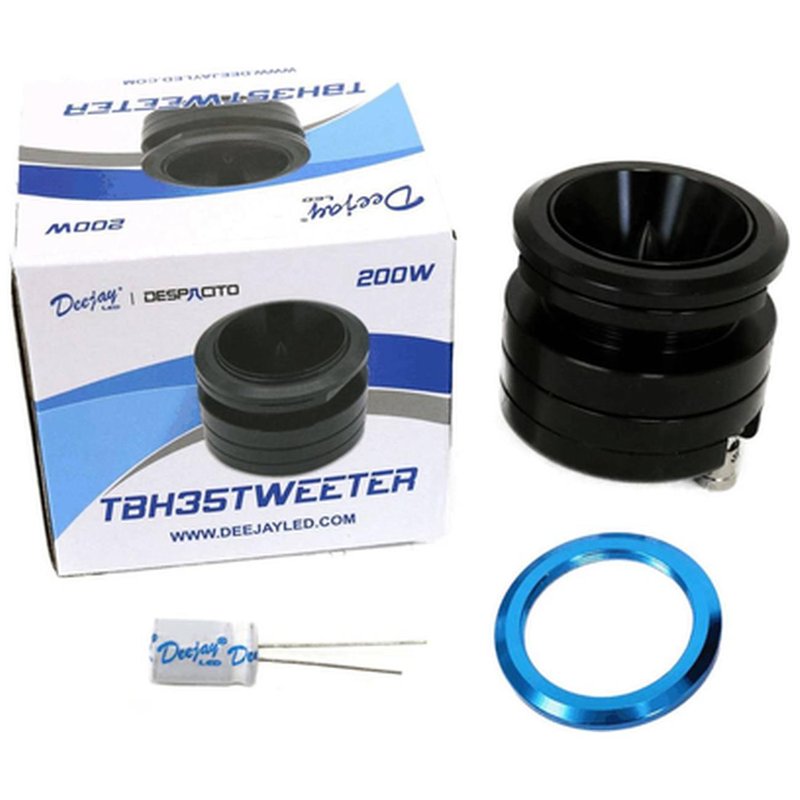

DEEJAY LED TBH35TWEETER

Manufacturer: DEEJAY LED
Unique panel mount tweeter with Titanium Diaphram and with choice of two front flush bezels
SKU: TBH35TWEETER

* Includes crossover capacitor
* Compact High Strength Neodymium magnet
* Kapton high temp voice coil
* Frequency response : 4500 Hz -20,000Hz
* Impedance 4 ohms
* Finely machined metal
* Includes two different types of threaded bezel decorative outer trim ring
* Includes large threaded bolt to affix rear side
* Designed to install through a panel ideally less than 10 mm thick
but with a maximum depth of about 15 mm
* Center diameter is about 42 mm
* Diameter of front trim ring is about 57 mm
* Install depth is about 53 mm
* length front to rear is about 58 mm
* Rear body diameter is about 59 mm
* 100 Watts RMS
* 200 Watts Program
* 25.4 mm Voice Coil
* Sensitivity: 106dB 1W/1M
* Quick release spring loaded terminals
